Reefer Cargo Service

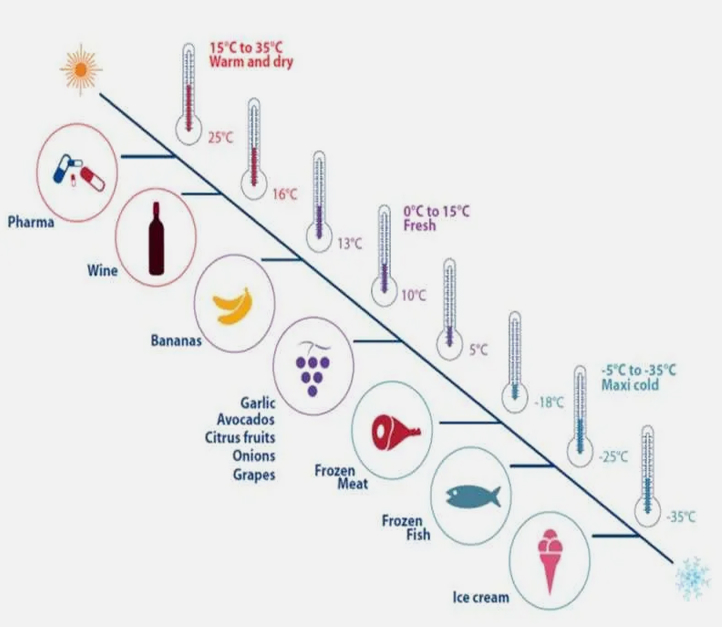

Reefer Cargo Category

When it comes to shipping the temperature-controlled cargo, every detail matters. We understand the importance of keeping these cargoes fresh or frozen: the temperature, atmosphere, humidity, ventilation, all specific condition in the container must be carefully adapted for the entire voyage, from the moment it is loaded until it’s finally delivered.

Chilled Cargo
Chilled cargo refers to commodities which need to be shipped above product freezing temperatures. These cargoes are carried at the temperature between +20°C to -2°C. Some chilled cargoes are more temperature-sensitive with relatively short shelf lives and require extra attention during transportation.

Types of chilled cargo include:
- Fresh fruit and vegetables
- Fresh meats, poultry and seafood
- Dairy products and eggs
- Fresh juices and beverage
- Confectionery products
- Live plants and cut flowers
Frozen Cargo
Frozen cargo refers to commodities or foodstuffs which need to be shipped and stored around -20°C, the optimum temperature for protection against spoilage and reduce the growth of bacteria. To maintain quality, texture and flavor, certain commodities need to be transported at temperatures -20°C or even lower.

Types of chilled cargo include:
- Frozen meats, poultry and seafood
- Frozen prepared foods
- Frozen concentrates
Temperature-Sensitive Cargo
These types of products are normally high-valued and extremely sensitive to temperature changes. Chemical reactions can occur if temperatures are not kept within a prescribed range, therefore the highest level of care must be treated with these cargoes. It is important to strictly adhere to the special handling instructions regarding the packaging, stowage, temperature and humidity management for these cargoes.

Types of chilled cargo include:
- Pharmaceutical products
- Chemical and biological products
- Drinks and liquids
- Tobacco products
- Photographic materials

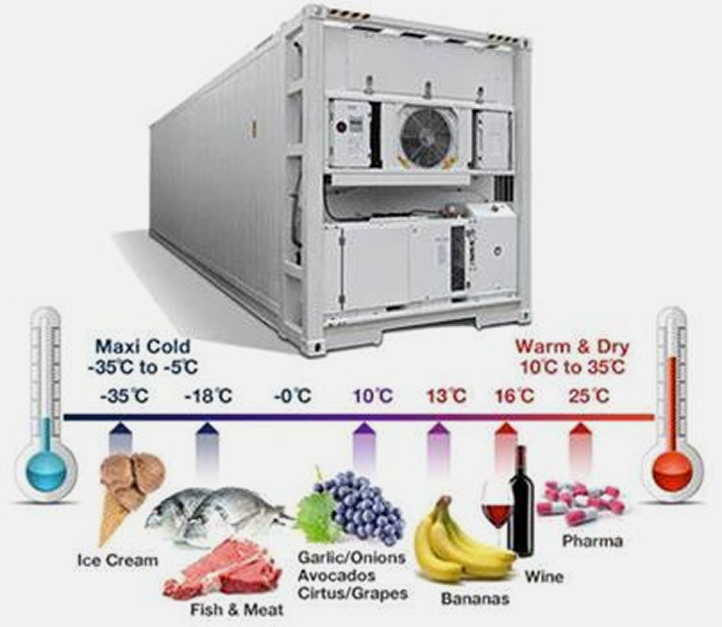

Reefer Container

A Reefer Container is a specialized container designed to transport temperature-sensitive goods in the most ideal cold condition. The unit is equipped with an electrical generator for the purpose of cooling or heating the air within the container, thus offers a reliable solution to any specific individual requirement of temperature and humidity. Reefer containers makes refrigerated cargo transport much easier and safer.

We have the ability to offer wide range of modern reefer equipment that inside temperature can be set from -40°C to + 30°C, as well as different transport modes of cold treatment(CT), controlled atmosphere (CA), fresh air ventilation and dehumidification settings. Our experts can advise you on the best option for your cargo, depending on the type and volume of goods you are shipping.

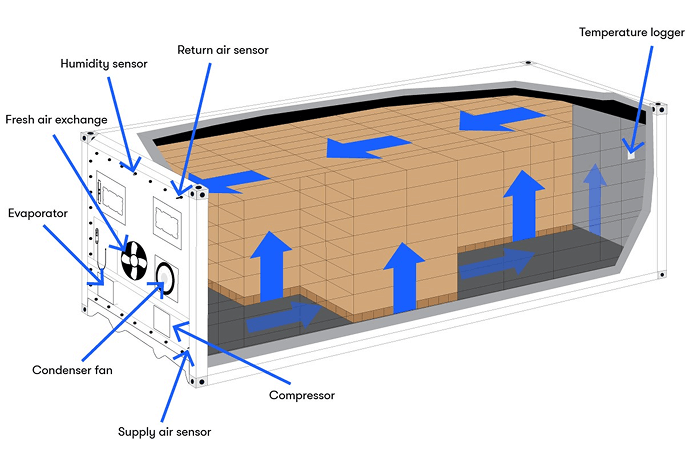

Components of a reefer refrigeration system

All reefer containers are equipped with certain components to help circulate air, remove heat and manage inside temperature. Most refrigeration units have excess cooling capacity to maintain product temperature.

The refrigeration unit consists of the following:

Compressor
Temperature controller
Condenser / fans
Supply air sensors
Evaporator / fans
Return air sensors
Expansion valve
Humidity sensor

Unit Specifications

Unit Specifications
Key Technical Specifications

Key Technical Specifications

20 - foot refrigerated container

Sample Specification
Exterior	Length(mm)	6,058
	Width(mm)	2,438
	Height(mm)	2,591
Interior	Length(mm)	5,456
	Width(mm)	2,288
	Height(mm)	2,263
Internal Capacity	(m³)	28.2
Doorway	Width(mm)	2,290
Doorway	Height(mm)	2,221
Tare Weight	(kgs)	2,910
Maximum Payload	(kgs)	27,570
Gross Weight	(kgs)	30,480

40 - foot high-cube refrigerated container

Sample Specification
Exterior	Length(mm)	12,192
	Width(mm)	2,438
	Height(mm)	2,896
Interior	Length(mm)	11,590
	Width(mm)	2,284
	Height(mm)	2,544
Internal Capacity	(m³)	67.5
Doorway	Width(mm)	2,290
Doorway	Height(mm)	2,502
Tare Weight	(kgs)	4,520
Maximum Payload	(kgs)	29,480
Gross Weight	(kgs)	34,000

The above dimensions serve as samples only while actual container dimensions vary with dierent specifications

Key Features
TEMPRATURE RANGE	Normal Reefer: -30 ℃ to +30 ℃
TEMPRATURE RANGE	Prime Reefer: -40 ℃ to +35 ℃
VENTILLATION RANGE	0 TO 285 CBM/H
OPERATING VOLTAGE	360-500 VOLTS/ 50-60 HERTZ
DEHUMIDIFICATION	95%to 60%
Reefer machine equipped with advanced technology for fast cool down and enhanced environment

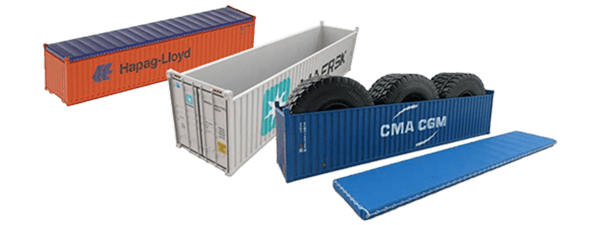

Open Top

Open Top containers have an open top covered by a tarpaulin instead of a solid roof. This enables oversized cargo to be loaded from the top. Open top containers normally also have end doors, like closed containers, to give flexibility for loading and unloading.

20 FEET

Specifications for 8’6” / 30,480kg
Inside Measurement	Length(cm)	589
	Width(cm)	234
	Height(cm)	234
Door Opening	Width(cm)	233
Door Opening	Height(cm)	224
Roof Header	Width(cm)	186
Roof Opening	Length(cm)	576
Roof Opening	Width(cm)	222
Load Capacity	(m³)	32.4
Container Weight	(kg)	2,380
Container Weight	(kg)	28,100

40 FEET

Specifications for 8’6” / 30,480kg
Inside Measurement	Length(cm)	1,202
	Width(cm)	234
	Height(cm)	234
Door Opening	Width(cm)	233
Door Opening	Height(cm)	224
Roof Header	Width(cm)	186
Roof Opening	Length(cm)	1,189
Roof Opening	Width(cm)	218
Load Capacity	(m³)	66.2
Container Weight	(kg)	3,880
Container Weight	(kg)	26,600

40 FEET HIGH CUBE

Specifications for 8’6” / 30,480kg
Inside Measurement	Length(cm)	1,203
	Width(cm)	235
	Height(cm)	265
Door Opening	Width(cm)	234
Door Opening	Height(cm)	258
Roof Header	Width(cm)	194
Roof Opening	Length(cm)	1,180
Roof Opening	Width(cm)	219
Load Capacity	(m³)	75.1
Container Weight	(kg)	4,060
Container Weight	(kg)	28,440

^*Indicated specifications for reference only. Actual unit may differs.

Why Prestige

Since our company was founded in 2016, we have been focusing on the transport of refrigerated cargoes. With years of dedication, we have become a leading forwarder in the sector, and our professionalism and service excellence has been well recognized by our customers around the world. We’re heading forward to make your reefer cargo transport more secure, efficient and sustainable.

At Prestige, we are customer-centric and always strive to exceed your expectation. -Your Trust, Our Commitment.

Tailor-made Solution and Operational Excellence

We work closely with our customers to develop customized solutions meeting all specific conditions, share commodity expertise and advise operational notices at the same time, to ensure that your cargo is transported safely, quickly, and cost-effectively.
Available Equipment, Guaranteed Space and Competitive Rate

We have established long-standing partnerships with local depots and major shipping lines covering all services and alliances to realize our advantages on equipment, space and rate at all seasons, as we know Reliability is what all customers concern the most.
A team of experts specialized in temperature-sensitive cargoes

Our team are made of highly skilled and experienced reefer experts, both on operation and sales. You can always count on us to ensure that your refrigerated cargo always gets the best care throughout the entire transportation.
Real-time Monitoring of Temperature, Movement and more live data

We are committed to facilitating the online tracking tools of shipping lines, to enable our customers with 24/7 real-time access to monitor internal temperature, humidity, atmosphere and more relevant live data.
Global reach with local service by reliable partner network

We are one of few members in China at WCA Perishables specialty network. This membership guarantees our reliability of worldwide professional partners with highest standard in the niche market, and enables us to provide all types of solutions from any part of the world.
Port- to-Port and End-to-End transport solutions

For both import and export, covering all trade terms from EXW to DDP, from origin to final destination, we are capable of offering customs declaration, warehousing, pick-up and delivery services, from it is loaded until it is successfully delivered.

Merchandise Solutions

Whether cherries and avocados from South America, citrus and grapes from Africa, frozen meat from North America and Oceania, salmon, dairy and wine from Europe or fresh fruits and vegetables in Intra Asia trade - whatever your product is or wherever your market is around the world, we have the unmatched experience and technical expertise, to bring your cargoes to the market in perfect and freshest condition.

Keeping refrigerated cargo fresh and frozen depends not only on the temperature inside the container, but also humidity control and fresh air circulation. Here are the key indicators for the setting of rigorous cool condition:

Cold Treatment (CT): temperature control from -40°C to +30°C to preserve the freshness and quality
Controlled Atmosphere (CA): maintains balanced O2 & CO2 levels to extend product shelf life.
Fresh Air Ventilation: provides up to 285 CMH fresh air, removing ethylene and other volatiles.
Humidity Control: lowers the humidity from 95% to 60% to prevent rotting and fungal development
Live Monitoring: Real-time tracking the internal temperature, humidity, atmosphere, etc.

Chilled Cargoes

Chilled Cargoes
Frozen Cargoes

Frozen Cargoes
Pharmaceuticals Transport

Pharmaceuticals Transport

Chilled Cargoes

Fruits & Vegetables - crucial to control the appropriate temperature, humidity, oxygen,carbon dioxide and ethylene levels to maintain the freshness and quality.

Dairy product - like cheese, milk, yogurt, ice cream are extremely temperature-sensitive, need to be transported in well controlled environments.

Beverages - many beverages, like beer, wine, and milk require cold storage.

Flowers & Plants - flowers and plants need a controlled environment with specific temperature and humidity settings. Safe transport and prevention from withering is the essential condition.

Chemicals - Various types of alcohols, esters, ketones and acids require near-freezing temperatures for safe transit.

Industrial products - industrial films, photographic materials are highly temperature-sensitive, requires consistent control of temperature condition throughout the transport.

Chilled cargo is highly perishable and can gradually ripen during shipment. It is crucial to pre-cool your goods before loading them into reefer container. This will reduce the impact of outside temperatures while they are on the move. Here are three key factors impact the temperature of products during transportation:

Outside temperatures entering the container during loading and unloading
The temperature of the product itself prior to loading
Ventilation inside the container

Frozen Cargoes

The foodstuffs like frozen meat, fish, seafood, IQF vegetables require near-cryogenic temperatures to remain fresh. When transporting frozen products, make sure that cargoes inside the container form a solid block without spaces between boxes and the walls of the unit. This allows air to freely circulate evenly around the load maintaining a steady temperature for your goods. Here are four key factors:

The cargo must be pre-frozen to the correct temperature.
Maximum load height should never exceed the red load line of the container.
Ventilation of the container must always remain closed and humidity off.
Packaging must be able to resist moisture and allow for a vertical flow through boxes to maintain the correct temperature.

Pharmaceuticals Transport

Ensuring optimal condition of pharmaceutical products is crucial since the products themselves are highly sensitive in terms of time and quality assurance.Transportation of pharmaceuticals requires either standard (+15 to +25°c) or sensitive (+2 to +8°c) as well as frozen temperature conditions.

Reefer container with the latest technology ensures consistent management of strictest conditions throughout transportation.The modern systems ensure pharmaceutical products are kept at the optimal cold treatment and dehumidification with minimum damage or degradation. Depending on the sensitivity and cargo value, we will work with you to customize the solution with regards to e.g. additional care, specific reefer equipment (e.g. for blood plasma) and power off times.

Opt for a GDP-Compliant Transport Solution

Nowadays all main shipping lines are certified with GDP* standard, the highest standard in the industry, which requires reinforced security procedures to ensure pre-trip inspections (PTI), precise temperature control, monitoring and recording of the traceability, seal management and risk management approach are all strictly implemented within the required tolerance ranges during transportation.

*Good Distribution Practice: quality standard recommended by the European Commission guaranteeing the quality and integrity of pharmaceutical products throughout transportation.

At Prestige, we commit to following GDP compliant practices and providing reliable, secured, cost-effective deliveries for your pharmaceutical products. Our reefer specialists will assist you from the time you place a booking until the cargo is delivered to the final destination. — Count on us for Pharmaceuticals Transport.

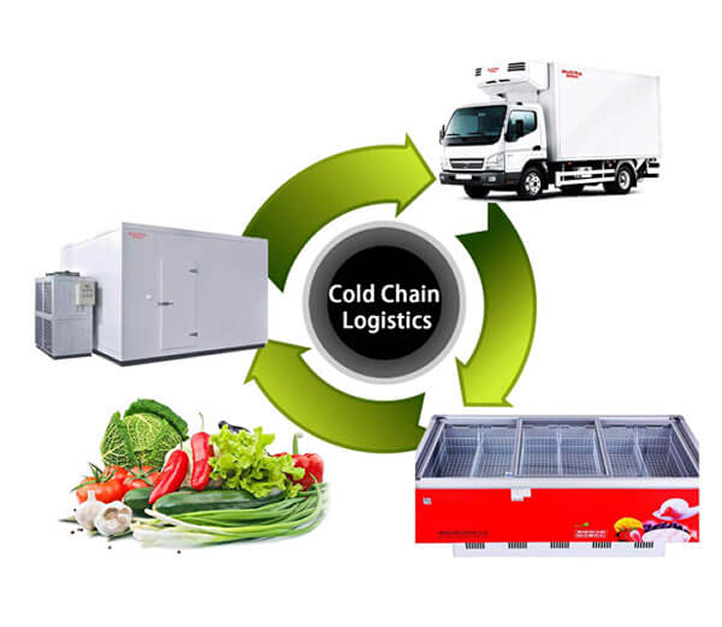

Import Cold Chain Logistics

We understand that the ability of cold storage and timely distribution of perishable and temperature sensitive goods, both at the port and beyond, is crucial for your supply chain. That’s why we continue to invest in flexible and innovative cold warehouses and distribution fleet.

Across land and sea, at Prestige, we offer a streamlined and efficient cold chain logistics service for your imported cargoes with full control and visibility. - Your Trust, Our Commitment

Temperature-controlled Warehouse
Our professional cold warehouses are equipped with state-of-the-art cold storage facilities and controlling technologies, catering for temperature ranges from deep frozen goods all the way to chilled and temperature controlled atmospheres.
- Deep frozen meat and seafood -30° C to -18° C (-22° F to -0.4° F)
- Frozen meat and seafood -18° C to 0° C (-0.4° F to 32° F)
- Pharmaceuticals 2° C to 8° C (36° F to 46° F) or 15°C to 25°C（59°F to 77°F）
- Chilled fruits, vegetables, dairy products 7° C to 14° C (44.6° F to 57.2° F)
- Ambient fresh produce etc. 14° C to 24° C (57.2° F to 75.2° F)
Temperature-Controlled Transport

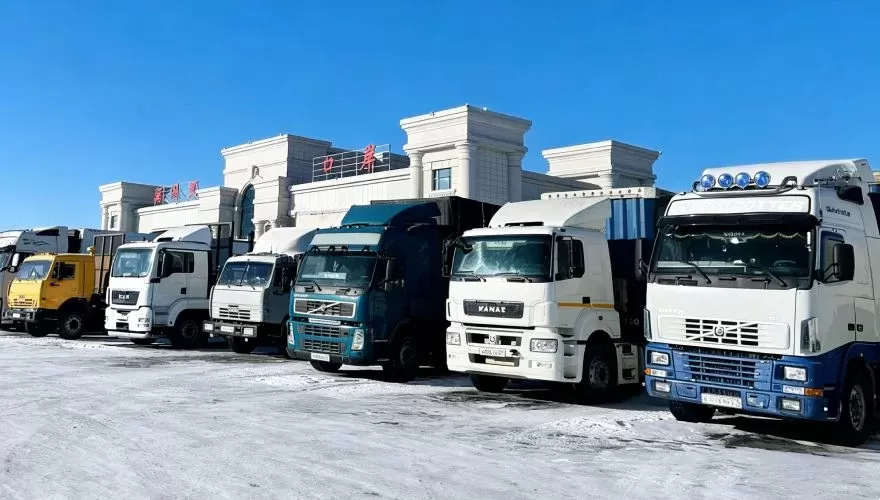

Transporting perishable goods from cold warehouse to distributors and retailers constitutes another important part of cold chain. Refrigerated truck fleet equipped with latest temperature control systems ensures that cargo is kept at an optimal temperature environment during the delivery, and avoids the temperature fluctuations during storage and transport
Monitoring and Control

An important element of the cold chain is real-time monitoring. We can achieve end-to-end visibility in our cold chain operations about temperature, humidity and location tracking, to make sure your cargo is effectively monitored, and be prepared to deal with any disruptions and emergencies.
Quarantine Inspection & Customs Clearance

Importing perishable goods from abroad means the necessary quarantine inspection and customs clearance need to complete. Any delays can lead to possible degradation and you need to consider the extra time it takes for goods to go through the process.
A qualified and well-trained broker is key to ensure smooth and efficient operations. We have long-term broker partners with up-to-date knowledge of all kinds of refrigerated cargoes and proper compliance can be ensured for an efficient process to avoid any delays or issues during the clearance process.
